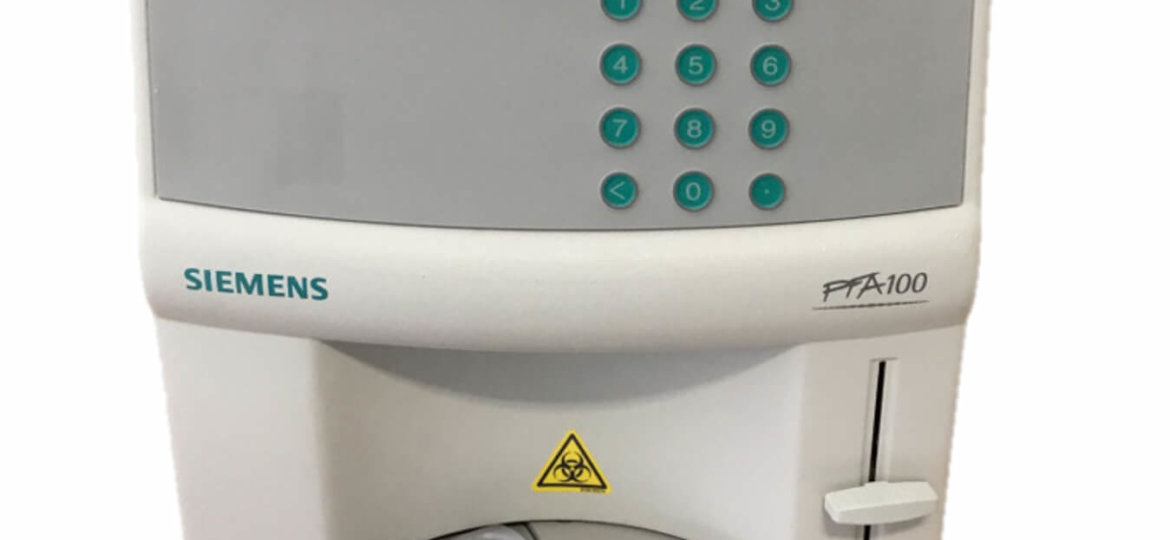

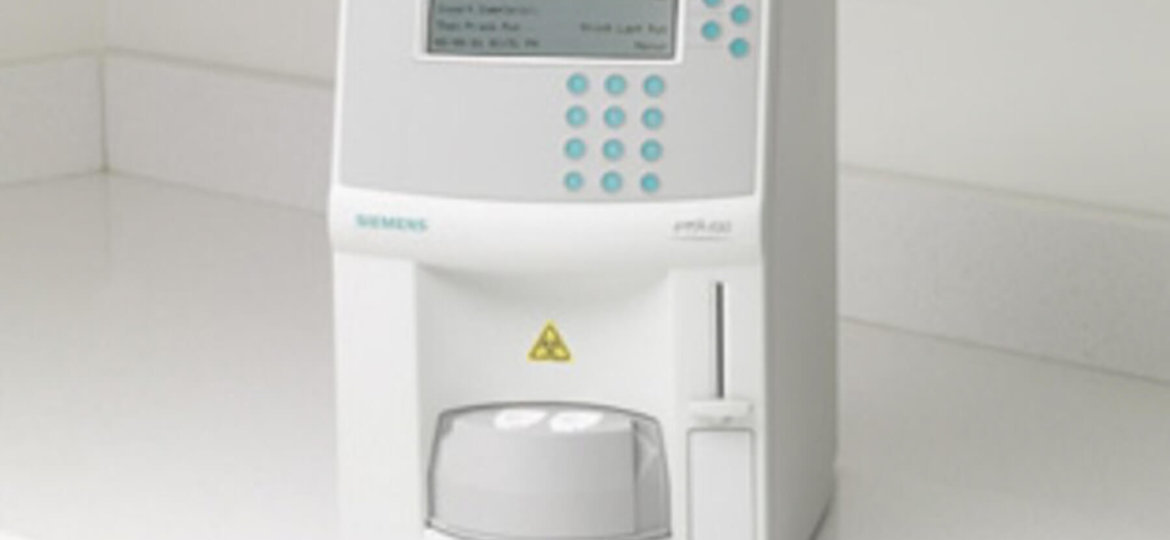

PFA-100® System
The PFA-100® System measures the complex process of primary hemostasis and aids in the rapid detection of platelet dysfunction.
Device Type
Rapid Platelet Dysfunction Detection System
Application Area
Hematology
Client
Siemens Healthineers
Role of BIT
Manufacturing, After-Sales Services
History
Since 2014
The PFA-100® System measures the complex process of primary hemostasis and aids in the rapid detection of platelet dysfunction. It is the first commercially available in vitro testing system to incorporate high-shear flow in which the process of platelet adhesion and aggregation following a vascular injury is simulated in-vitro.
| Test Type | High-shear Force Dynamic Flow System |
| Sample Types | Citrated whole blood |
| Sample Volume | < 800 μl |
| Assay Applications | Collagen, Epinephrine and Collagen, ADP Test Cartridges |
| Throughput | Single Test: 6 Tests/ hr Double Test: 10 Tests/ hr |
| Walk Away Time | n/a |
| Time to First Result | 5 – 8 min |
| Analysis Type | Sequential |
| Sample Loading Capabilities | Manual Pipette Dispensing |
| Input & Output | RS-232 25 |
| Interface | LCD Screen |
| Dimensions | 36 cm x 38.4 cm x 22.9 cm (H x W x D) |
| Weight | 10.9 kg |
| Power | AC 100 – 250 V 50/60 Hz 110 W |
