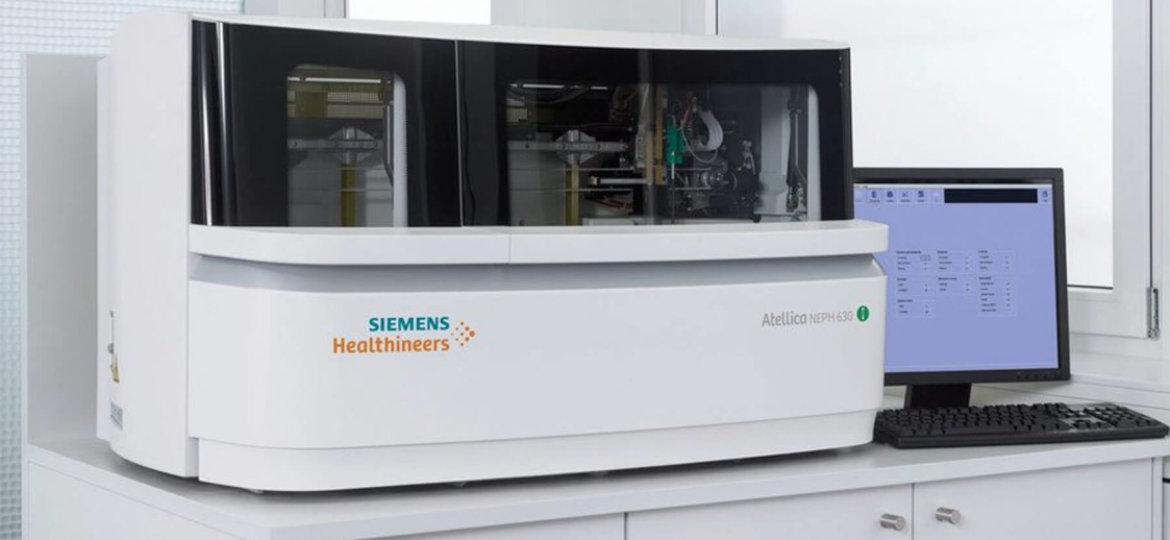

Atellica® NEPH 630 System
The Atellica® NEPH 630 System* is a mid-volume dedicated nephelometric analyzer that simplifies lab operations in specialty protein testing.
Device Type
Mid-Volume Nephelometric Analyzer
Application Area
Clinical Chemistry, Immunology
Client
Siemens Healthineers
Role of BIT
Manufacturing, After-Sales Services
History
Since 2017
The Atellica® NEPH 630 System* is a mid-volume dedicated nephelometric analyzer that simplifies lab operations in specialty protein testing. The system offers the broadest menu of protein tests for assessment on urine, CSF, plasma, and serum, enabling enhanced quantification of certain health conditions. With innovative assays including FLC, CDT, and BTP, the system supports the assessment and monitoring of cardiovascular risk, kidney diseases, neurological disorders, nutritional status, and other diseases.
| Test Type | Nephelometry, Clinical Chemistry |
| Sample Types | Urine, CSF, Plasma, Serum |
| Sample Volume | < 1.5 mL |
| Assay Applications | > 60 assay protocols including FLC, CDT, and BTP |
| Throughput | Effective: 65 Tests/ hr Nominal: 100 Tests/ hr |
| Walk Away Time | |
| Time to First Result | |
| Analysis Type | Continous Access, Random Access |
| Sample Loading Capabilities | |
| Input & Output | USB Ports 1 x 10-Base-T/Base TX Ethernet RJ45 1 x Serial (DB-9) (male) |
| Interface | Analyzer – USB Connectivity to Windows Computer |
| Dimensions | 60 cm x 107 cm x 63 cm (H x W x D) |
| Weight | 115 kg |
| Power | 100 V rating: 90 to 110 V 120 V rating: 108 to 132 V 230 V rating: 207 to 253 V 500 VA |
