MassARRAY®
Nanodispenser RS1000
The MassARRAY System is a scalable platform offering a suite of applications for quantitative and qualitative genomic analysis.
Device Type
MassARRAY Liquid Handler
Application Area
Clinical Chemistry, Molecular
Client
Agena Bioscience, Inc.
Role of BIT
Manufacturing, After-Sales Services
History
Since 2007

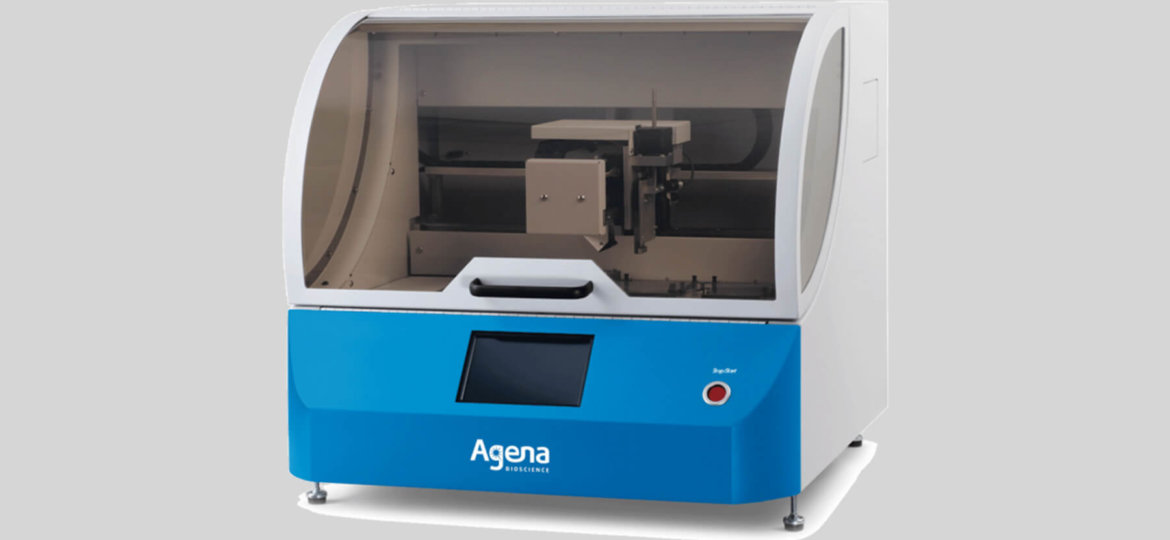

The MassARRAY System is a scalable platform offering a suite of applications for quantitative and qualitative genomic analysis. It provides unparalleled sensitivity and specificity using MALDI – TOF mass spectrometry. The MassARRAY Nanodispenser performs rapid sample transfer onto spectrochip arrays. Its standard configuration holds up to 2 microtiter plates. 384 samples are transferred in less than 10 minutes.
| Test Type | Genomic Analysis through MALDI-TOF MS detection |
| Sample Types | FFPE, Blood Plasma, Whole Genome Amplified DNA |
| Sample Volume | < 6 – 30 µL |
| Assay Applications | DNA Analysis Applications with Reagents for Somatic Mutation Analysis, Genotyping, Methylation Analysis, Quantitative Applications |
| Throughput | > 1000 Samples/ day |
| Walk Away Time | > 40 min |
| Time to First Result | < 40 min |
| Analysis Type | |
| Sample Loading Capabilities | 1 / 4 / 16 – 24 / 96 / 384 (# of Samples on Single 24-/96-/384-WELL Chip) |
| Input & Output | 2 x USB ports, I/O Port, VGA Port, Ethernet Port |
| Interface | Touchscreen |
| Dimensions | 65.8 cm x 72 cm x 69.8 cm (H x W x D) |
| Weight | 70.3 kg |
| Power | AC 100-240 V 50/60 Hz |
