BCS® XP System
The BCS® XP System, one of the most widely used fully automated hemostasis analyzers, delivers accurate and precise results.
Device Type
Fully Automated Hemostasis Analyzer
Application Area
Clinical Chemistry
Client
Siemens Healthineers
Role of BIT
Product Development, Manufacturing, After-Sales Services
History
Since 2005

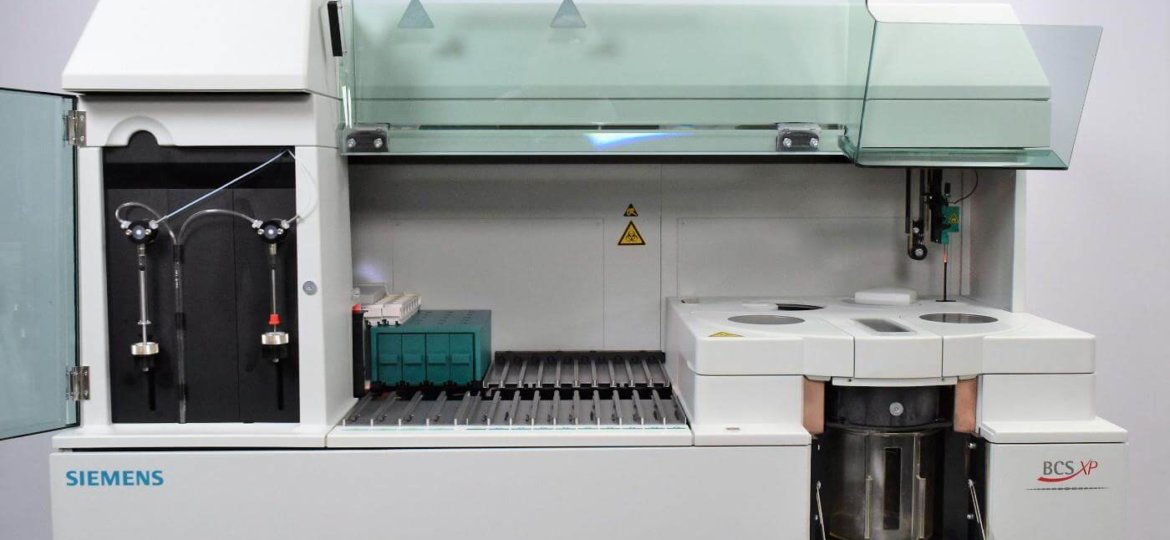

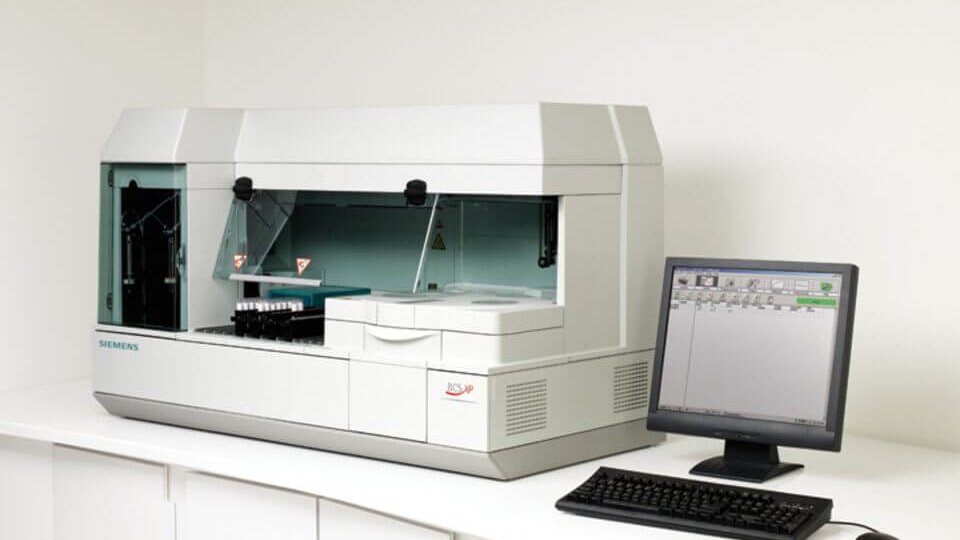

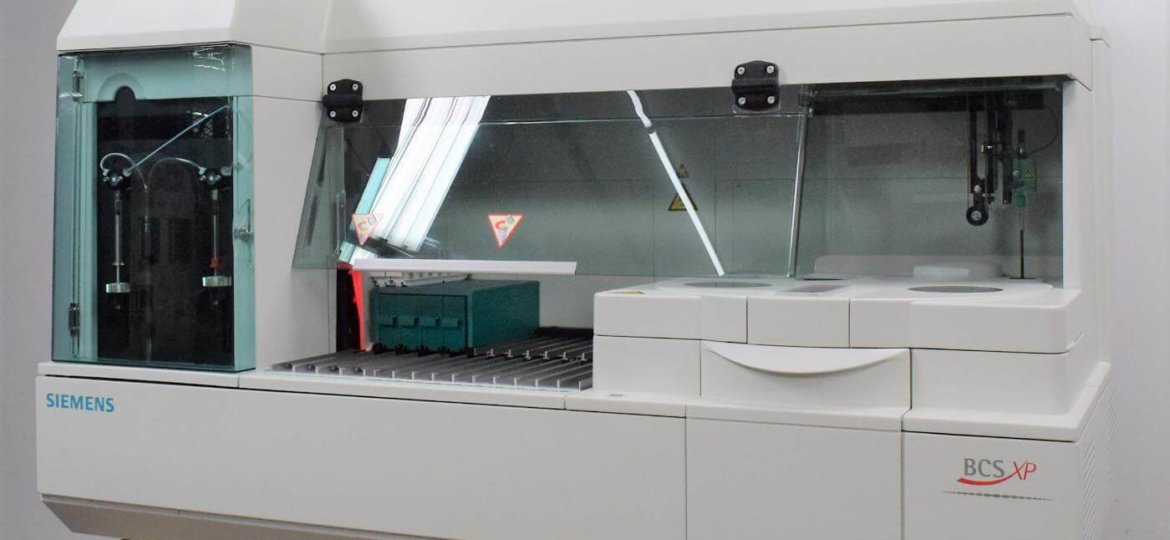

The BCS® XP System, one of the most widely used fully automated hemostasis analyzers, delivers accurate and precise results. The high-speed, random-access analyzer performs clotting, chromogenic, immunologic, and agglutination testing while allowing the consolidation of both specialty and routine reagents onto one high throughput analyzer.
| Test Type | Clot Detection Chromogenic Immunologic |
| Sample Types | Citrated Plasma, Platlet-Poor Citrated Plasma |
| Sample Volume | 1.8 – 2.7 mL |
| Assay Applications | > 60 Programmed Protocals Including vWF Ristocetin and INNOVANCE® ETP |
| Throughput | ~ 380 PT Tests/ hr ~ 325 Simultaneous Tests/ hr |
| Walk Away Time | |
| Time to First Result | < 5 Min |
| Analysis Type | STAT Batch Continuous Random Access |
| Sample Loading Capabilities | 100 Samples (10 racks = 100 tubes) |
| Input & Output | Connection to PC |
| Interface | External PC |
| Dimensions | 124 cm x 63 cm x 92 cm (H x W x D) |
| Weight | 155 kg |
| Power | AC 100-240 V 50/60 Hz 450 VA |
