SMARTChemLab

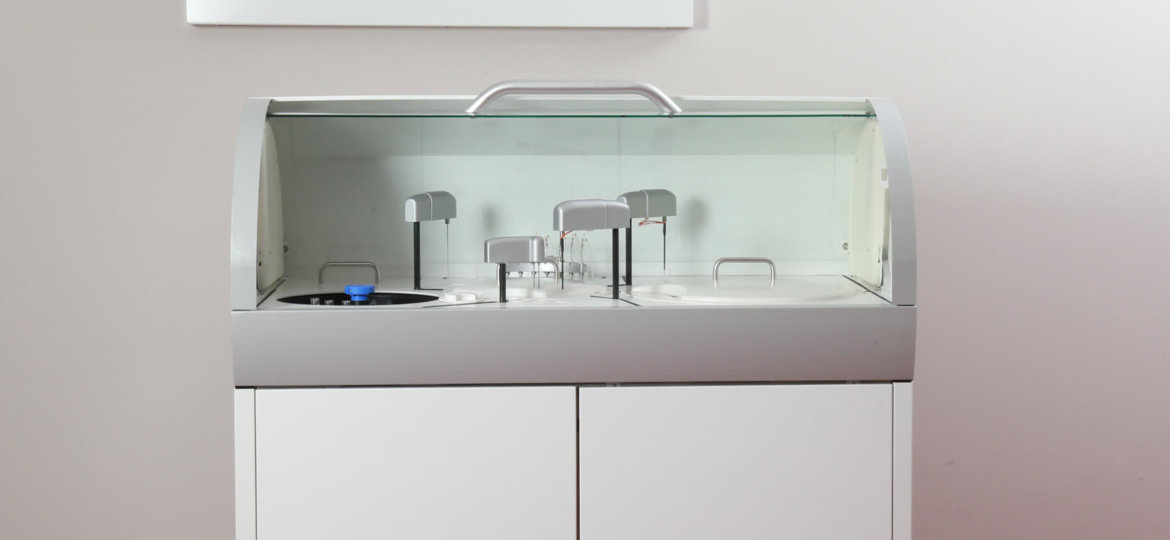

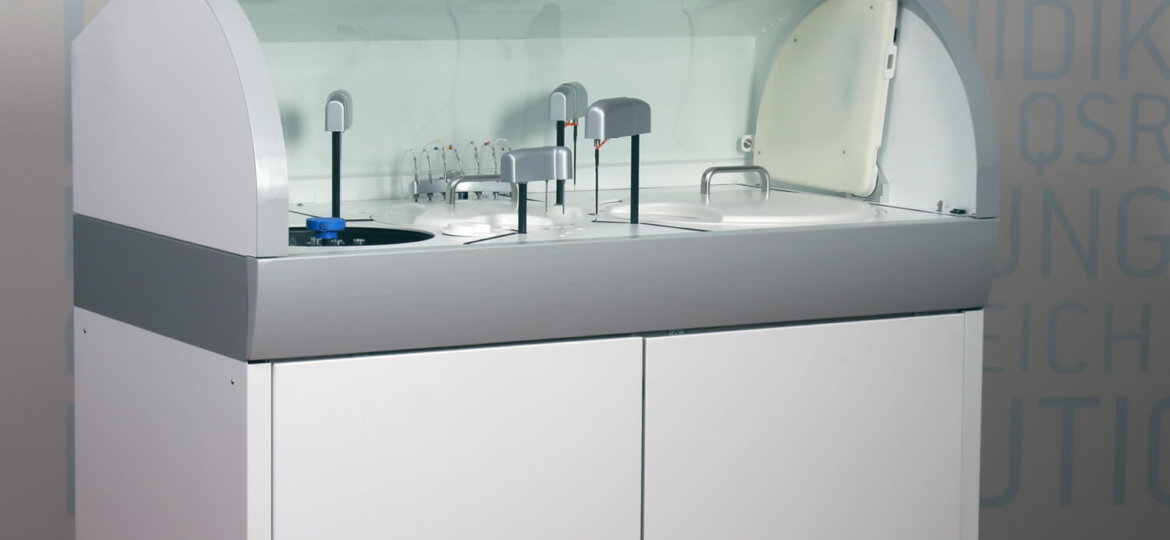

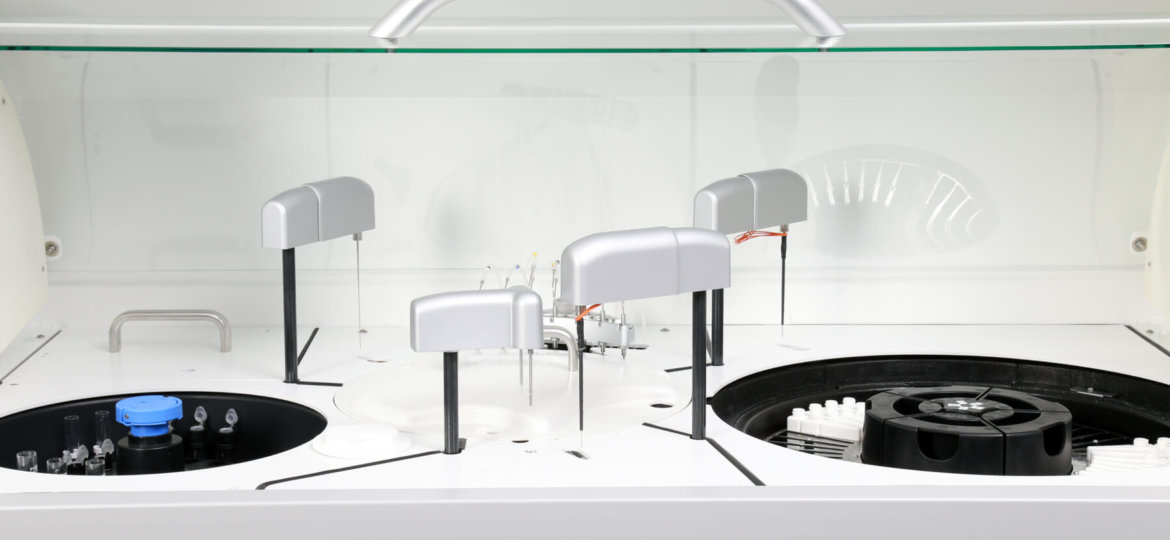

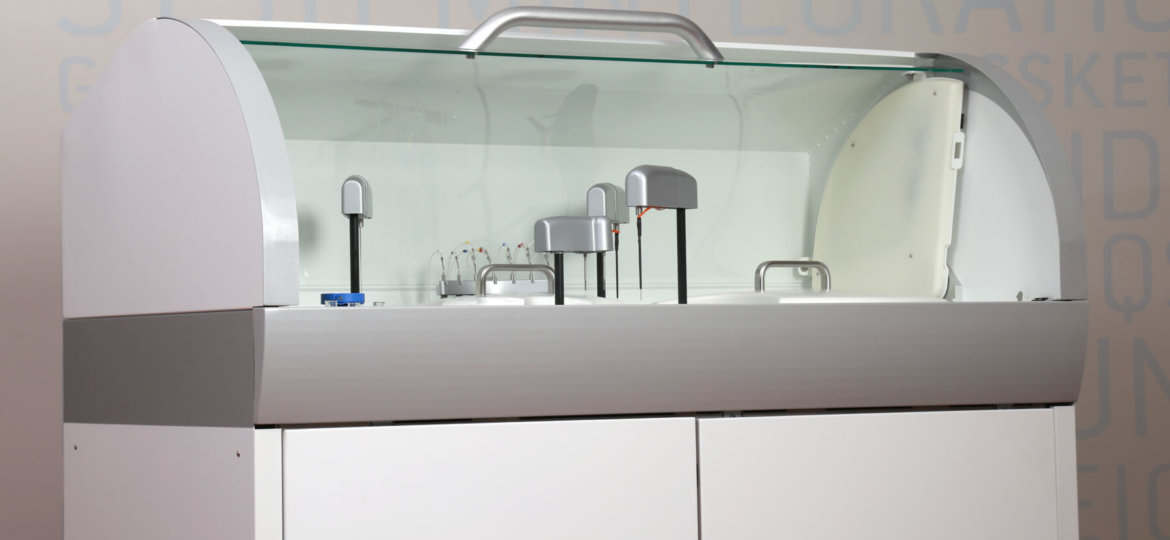

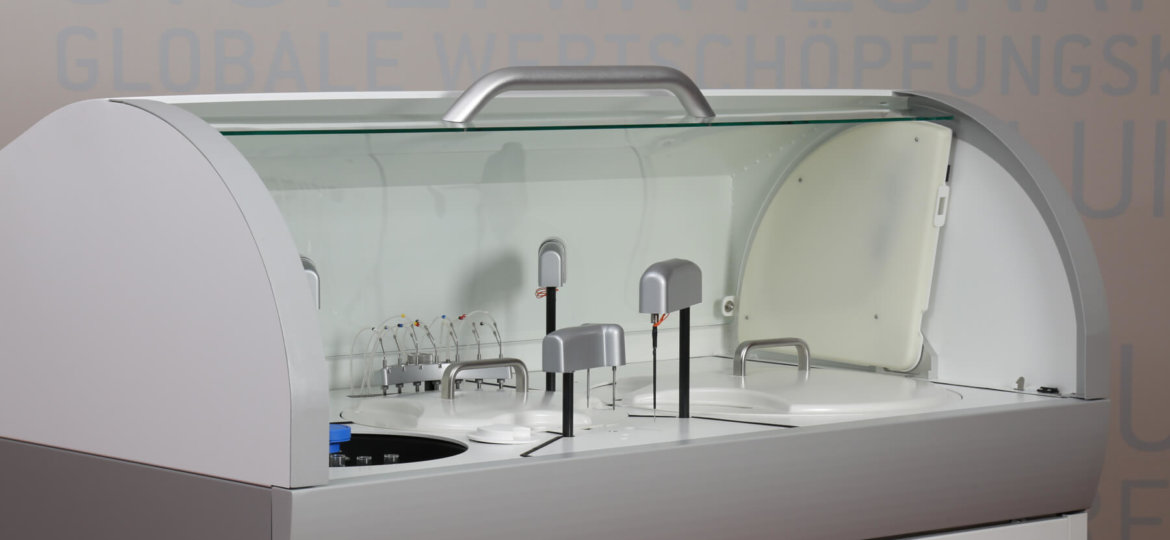

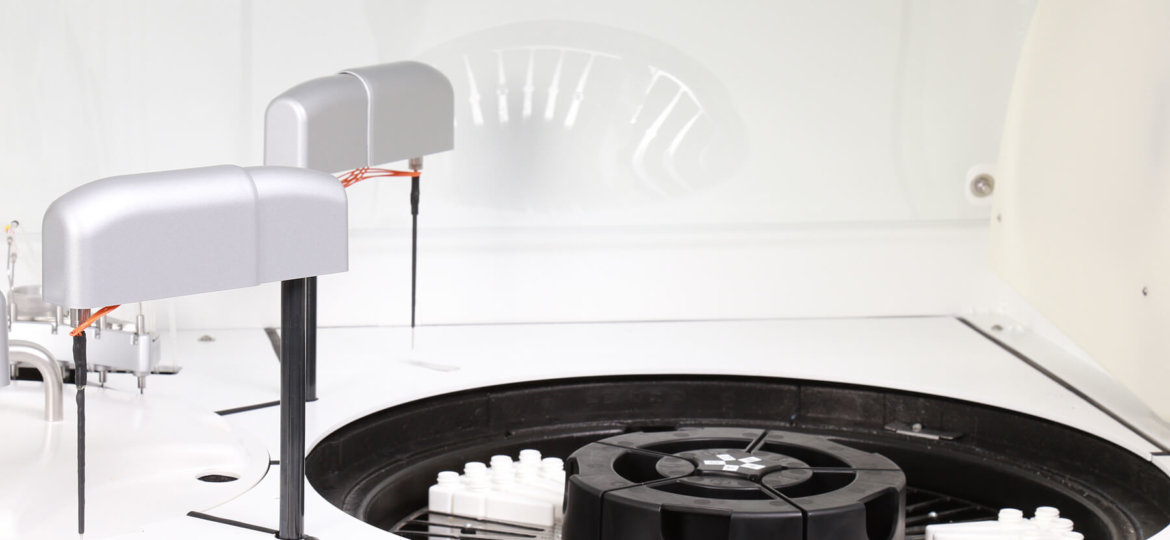

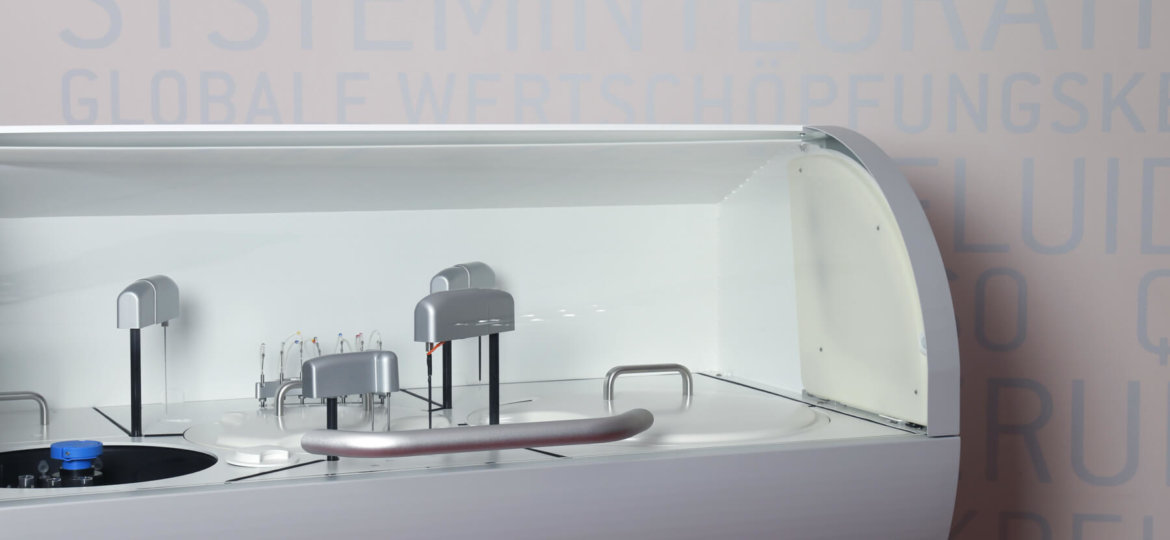

The SMARTChemLab is a fully automated, random access, computerized clinical chemistry analyzer.
Device Type
Automated Clinical Chemistry Analyzer Platform
Application Area
Clinical Chemistry
Client
BIT
Role of BIT
Product Development, Manufacturing, After-Sales Services
History
Since 2012
The SMARTChemLab is a fully automated, random access, computerized clinical chemistry analyzer that uses serum, urine and plasma sample types to perform in vitro quantitative and qualitative tests on a wide range of analytics.
| Test Type | Photometric Turbidimetric |
| Sample Types | |
| Sample Volume | < 140 µl |
| Assay Applications | 46 Programmable Tests |
| Throughput | 400 – 600 Tests/ hr |
| Walk Away Time | >1 hr |
| Time to First Result | <1 hr |
| Analysis Type | STAT Random Access |
| Sample Loading Capabilities | 80 Samples |
| Input & Output | USB Ports |
| Interface | External PC Color Touchscreen Monitor Keyboard Mouse |
| Dimensions | 140 cm x 131 cm x 80 cm (H x W x D) |
| Weight | 300 kg |
| Power | AC 100-240 V 50/60 Hz 550 W |
