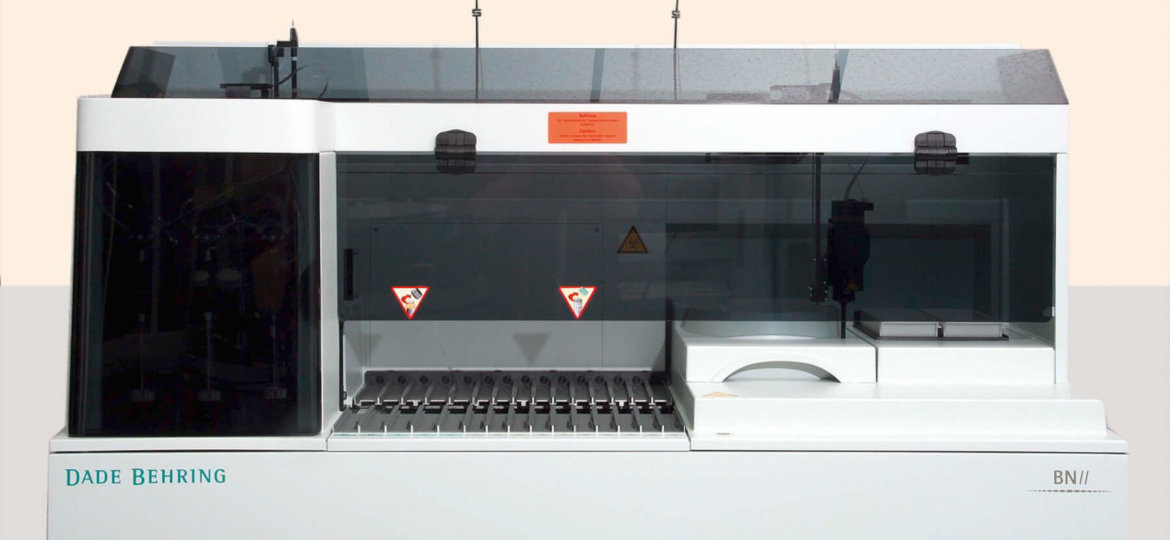

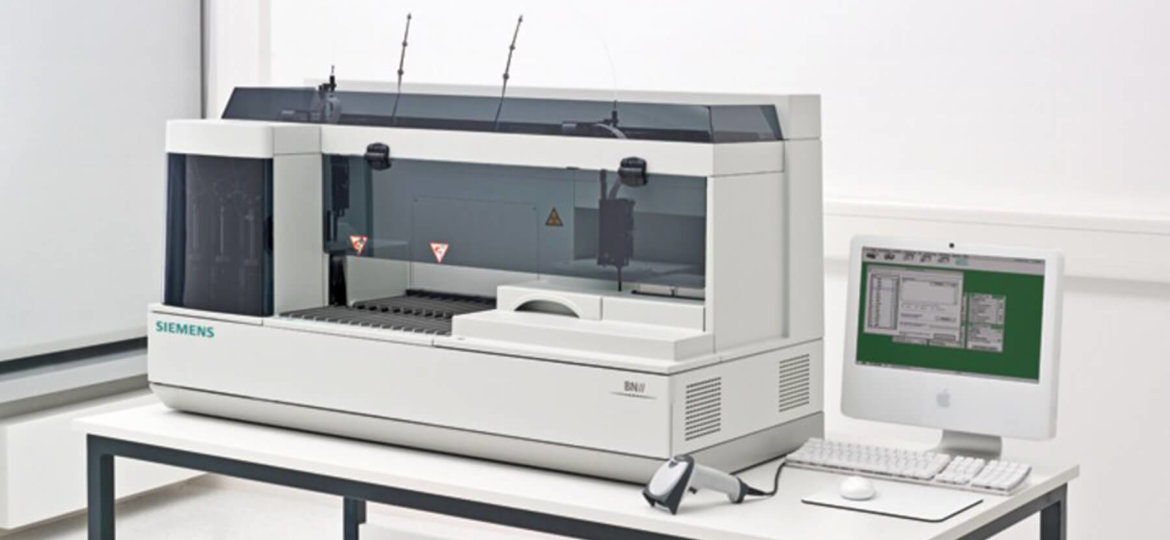

BN™ II System
The BN™ II System is an easy-to-use, reliable nephelometric analyzer that offers the broadest range of plasma protein
assays.
Device Type
Mid- to High-Volume Nephelometric Analyzer
Application Area
Clinical Chemistry, Immunology
Client
Siemens Healthineers
Role of BIT
Product Development, Manufacturing, After-Sales Services
History
Since 1993
The BN™ II System is an easy-to-use, reliable nephelometric analyzer that offers the broadest range of plasma protein
assays. With assays available across multiple sample types, you can conveniently assess numerous disease states such as
gammopathies, kidney diseases, neurology, and chronic alcohol abuse—on just one system.
| Test Type | Nephelometry |
| Sample Types | Serum, Plasma, Urine and CSF |
| Sample Volume | < 1.5 mL |
| Assay Applications | > 60 Assay Protocols Including FLC, CDT, and BTP |
| Throughput | Effective: 130 Tests/ hr Nominal: 225 Tests/ hr |
| Walk Away Time | > 2 h |
| Time to First Result | |
| Analysis Type | STAT Continuous Loading Random Access |
| Sample Loading Capabilities | < 100 Samples |
| Input & Output | Connection with PC |
| Interface | Computer Monitor Keyboard Barcode Reader |
| Dimensions | 124 cm x 92 cm x 63 cm (H x W x D) |
| Weight | 150 kg |
| Power | AC 100-240 V 50/60 Hz <400 VA |
