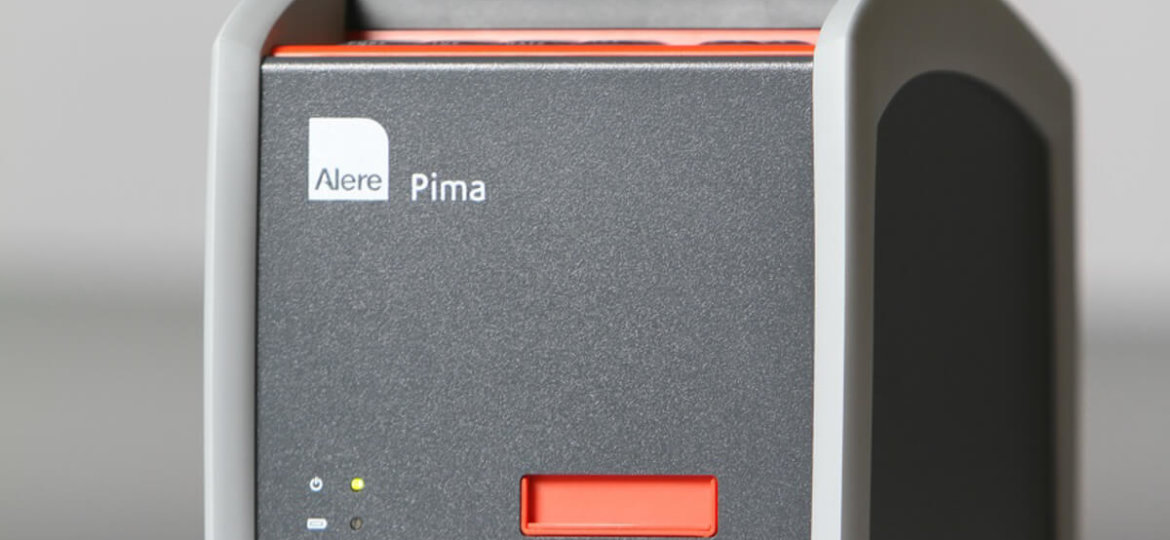

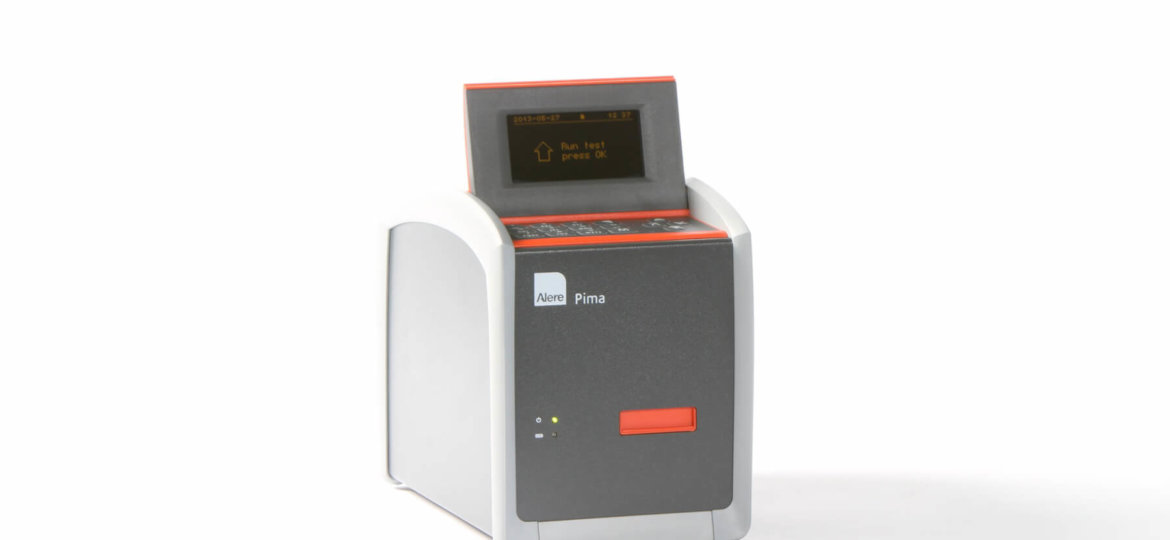

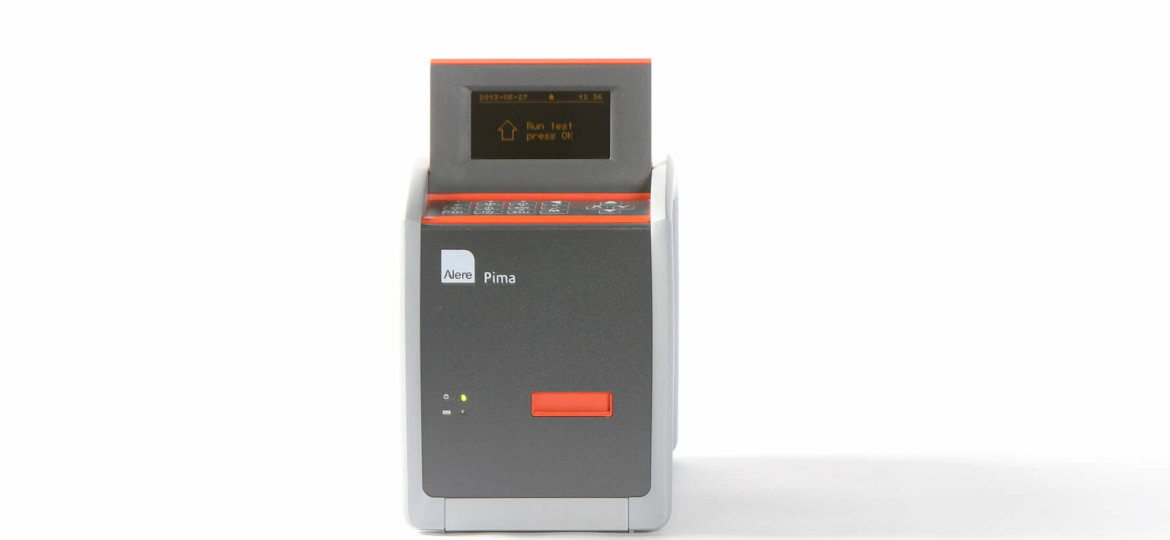

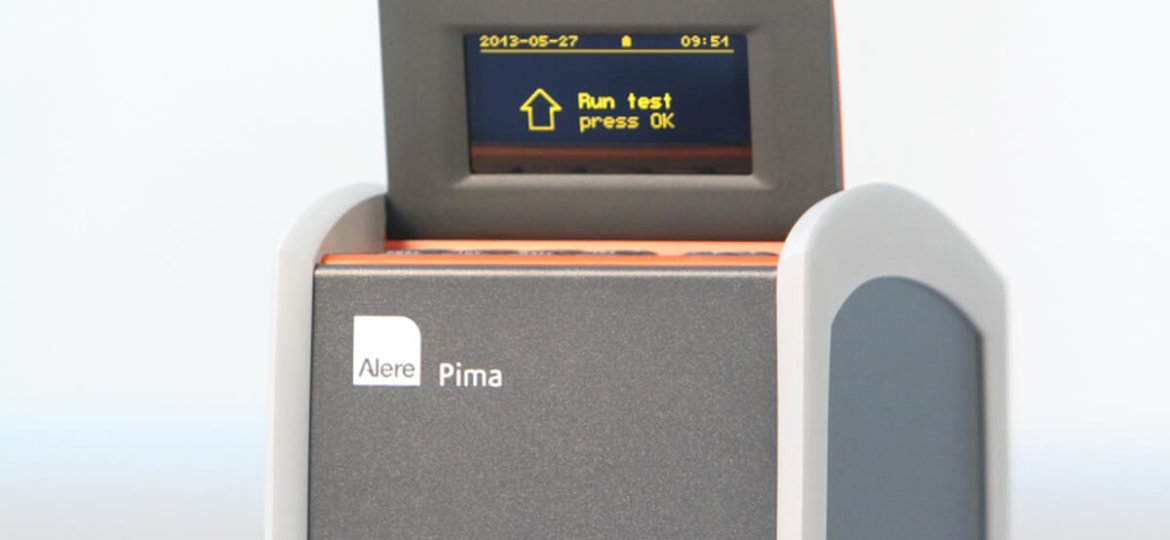

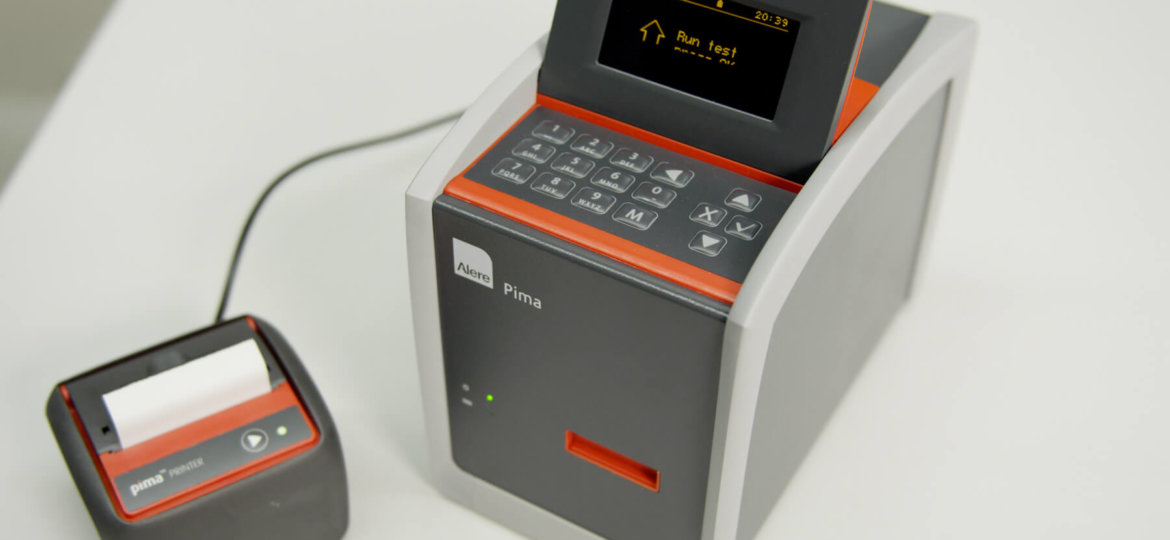

Pima™ Analyser
The Pima™ CD4 test gives you the ability to monitor patients while they are still in your care.
Device Type
POC CD4 Test Platform
Application Area
Hematology
Client
Abbott Laboratories
Role of BIT
Product Development, Manufacturing, After-Sales Services
History
The enumeration of absolute numbers of T-helper cells (commonly referred to as a CD4 count) is essential for establishing baseline immunity and assessing clinical outcome in patients infected with the Human Immunodeficiency Virus (HIV).
The Pima™ CD4 test gives you the ability to monitor patients while they are still in your care. Consisting of the Pima™ Analyser and Pima™ CD4 Cartridge, the CD4 test enables CD4 T-cell analysis at the point-of-care from a fingerstick or venous whole-blood sample in only 20 minutes, providing an effective and affordable tool in the management of HIV patients, specifically designed to serve the needs of the healthcare professional in the field, the laboratory or the office.
| Test Type | CD4 T-Cell Analysis |
| Sample Types | Venous or Fingerstick Whole Blood |
| Sample Volume | 25 µL |
| Assay Applications | Human Immunodeficiency Virus (HIV) |
| Throughput | 20 Samples/ day |
| Walk Away Time | > 20 min |
| Time to First Result | < 20 min |
| Analysis Type | Sequential |
| Sample Loading Capabilities | Manual Processing |
| Input & Output | USB Port External Printer |
| Interface | LED Mono-Color Screen 16-Button Keypad |
| Dimensions | 16 cm x 13 cm x 22 cm (H x W x D) |
| Weight | 2.54 kg |
| Power | AC 110 – 220 V 50/60 Hz On-Board Rechargable Battery |
