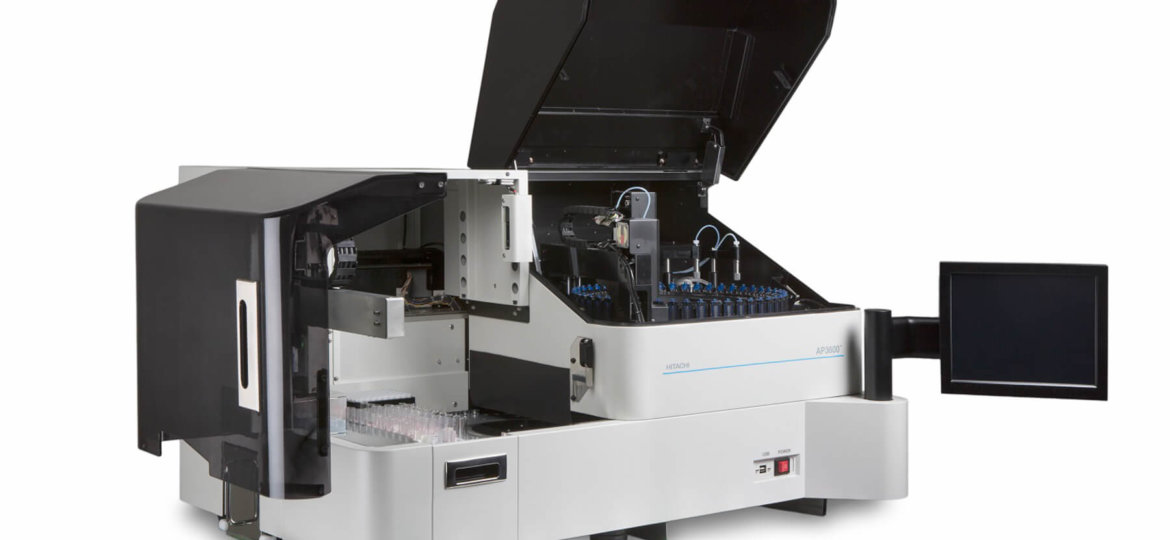

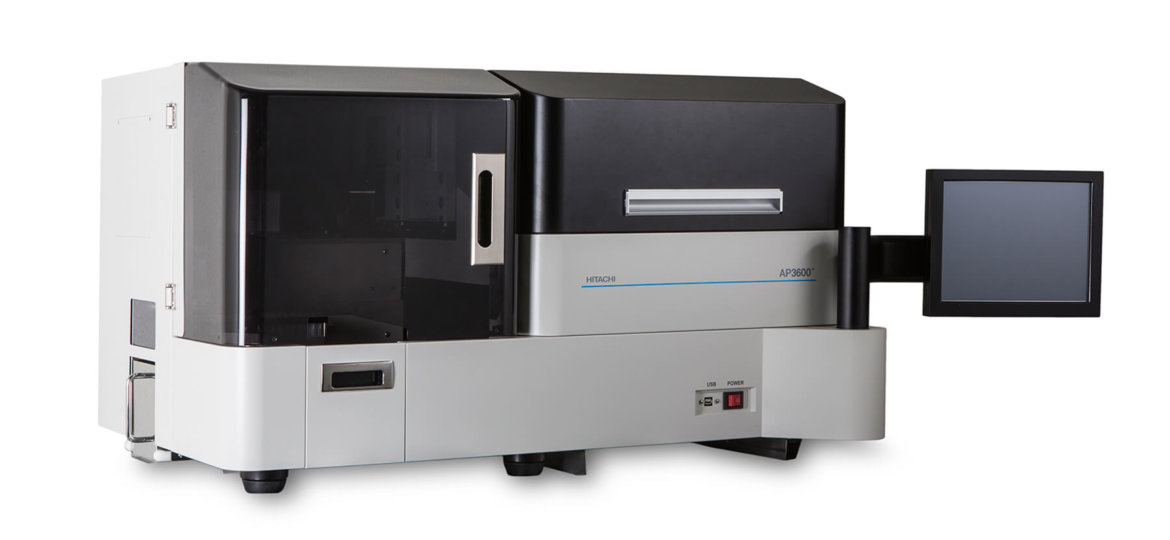

AP3600™
The AP3600™ system is designed for easy and efficient in vitro allergy testing using only a small amount of sample volume to measure allergen specific IgE concentration in human serum.
Device Type
Fully Automated Allergy Analyzer
Application Area
Immunology
Client
Hitachi Chemical Diagnostics
Role of BIT
Co-Product Development, Co-Manufacturing
History
Since 2015
The AP3600™ system is designed for easy and efficient in vitro allergy testing using only a small amount of sample volume to measure allergen specific IgE concentration in human serum. The system is fully automated and requires only the initial setup performed by the laboratory technician: prepare the patient samples, load the samples into the AP3600™ system, and load the required OPTIGEN® pettes. Each pette contains up to 36 different allergens which are tested simultaneously. The entire process takes less than six hours.
| Test Type | Chemiluminescent Assay |
| Sample Types | Serum |
| Sample Volume | > 700 µl |
| Assay Applications | 36 Specific IgE |
| Throughput | 3,600 Results/ Day |
| Walk Away Time | > 5.5 h |
| Time to First Result | 5.5 h |
| Analysis Type | |
| Sample Loading Capabilities | < 50 Panels/ run 100 Panels/ day |
| Input & Output | LIS Connectivity 6 x USB |
| Interface | Touchscreen |
| Dimensions | 63 cm x 114 cm x 76 cm (H x W x D) |
| Weight | 170 kg |
| Power | AC 100-240 V 50/60 Hz 500 VA |
